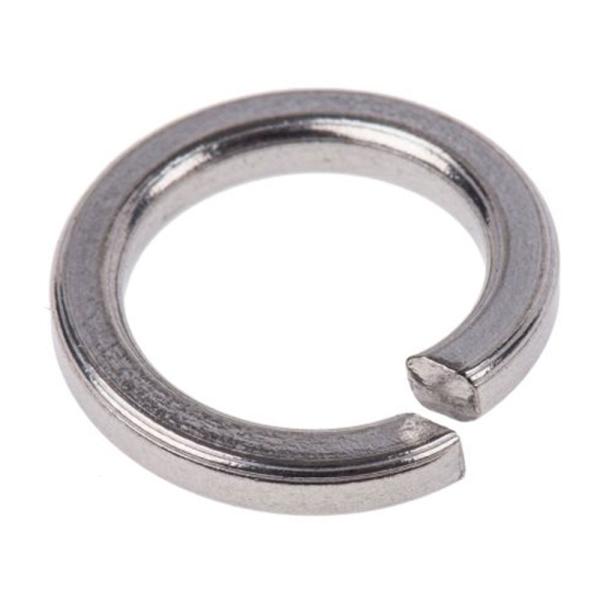

Nickle Alloy Steel Helical Spring Lock Split Washers Ansi/Asme B 18.21.1 - 1983

Name: Nickle Alloy Steel Helical Spring Lock Split Washers AnsiAsme B 18211 1983
Brand: TOBO
Price: 1000 USD

China Nickle Alloy Steel Helical Spring Lock Split Washers Ansi/Asme B 18.21.1 - 1983 factory

Brand Name : TOBO

Model Number : Spring split Washers

Certification : SGS BV ROHS etc

Place of Origin : China

MOQ : 1Kg

Price : 1000-2200USD/ton

Payment Terms : D/A, T/T, Western Union, MoneyGram

Supply Ability : Max 100-150 tons/month

Delivery Time : 15-30 days

Packaging Details : Neutral packaging or customized packaging

Standard : GB DIN JIS ANSI

Application : Heavy Industry, Mining, Retail Industry, General Industry, Oil & Gas,

Surface : zinc ,black oxide ,nickel ,ruspert,HDG,Dacromet

Product name : standard spring washer

Material : Brass, Stainless Steel, Steel, Alloy steel/Carbon steel/Stainless st

Size : 2#-3inch

Package : Box Packing+carton+pallets

Color : Sliver or as your request

Style : Split, Wedge, Internal Tooth, External Tooth, countersunk, Bonde

Contact Now

Nickle Alloy Steel Helical Spring Lock Split Washers Ansi/Asme B 18.21.1 - 1983

Metal gasket

Metal flat gasket
Metal corrugated gasket
Metal toothed gasket
Metallic annular gasket
Metal lens gasket
Metal O-ring cushion

The metal annular gasket can be divided into

Octagonal ring cushion
Oval ring gasket
Type RX and BX self-sealing ring gaskets

Products name	Ansi/Asme B 18.21.1 - 1983 Regular Helical Spring Lock Split Washers
Material	Brass, Stainless Steel, Steel, Alloy steel/Carbon steel/Stainless st
Size	2#-3inch
Surface treatment	Black/grey phosphate, zinc plated, nickel-plated, Rupert
Application	Heavy Industry, Mining, Retail Industry, General Industry, Oil & Gas,
Style	Box Packing+carton+pallets

Size	ID(mm)		OD(mm)		Thickness(mm)		Unit weight,Kg/1000pcs
Size	min	max	min	max	min	max	Unit weight,Kg/1000pcs
SAE NO.4	3.05	3.37	7.8	8.12	0.64	1.01	0.29
SAE NO.6	3.84	4.17	9.40	9.91	0.91	1.65	0.66
SAE NO.8	4.65	4.98	11.00	11.51	0.91	1.65	0.87
SAE NO.10	5.44	5.77	12.57	13.08	0.91	1.65	1.12
SAE NO.12	6.22	6.73	14.15	14.66	1.30	2.03	1.81
SAE 1/4	7.01	7.52	15.75	16.26	1.30	2.03	2.21
SAE 5/16	8.61	9.12	17.30	17.86	1.30	2.03	2.51
SAE 3/8	10.19	10.69	20.45	21.00	1.30	2.03	3.46
SAE 7/16	11.79	12.29	23.24	23.80	1.30	2.03	4.48
SAE 1/2	13.36	13.87	26.80	27.74	1.88	3.07	9.02
SAE 9/16	14.96	15.47	29.18	30.12	1.88	3.07	10.43
SAE 5/8	16.48	17.42	33.15	34.09	1.88	3.07	13.59
SAE 3/4	20.45	21.39	37.13	38.07	2.74	4.06	20.11
SAE 7/8	23.65	24.58	44.27	45.21	2.74	4.06	31.12
SAE 1	26.80	27.74	50.62	51.56	2.74	4.06	40.67
SAE 1-1/8	31.57	32.51	56.97	57.91	2.74	4.06	49.41
SAE 1-1/4	34.75	35.69	63.32	64.26	3.45	4.88	75.03
SAE 1-3/8	37.92	38.86	69.67	70.61	3.45	4.88	91.1
SAE 1-1/2	40.10	42.04	76.02	76.96	3.45	4.88	110.8
USS 3/16 NO.4	6.22	6.73	14.15	14.66	0.91	1.65	1.81
USS 1/4	7.80	8.41	18.47	19.02	1.30	2.03	3.04
USS 5/16	9.40	9.91	22.05	22.99	1.63	2.64	5.8
USS 3/8	11.00	11.51	25.22	26.16	1.63	2.64	7.42
USS 7/16	12.57	13.08	31.57	32.51	1.63	2.64	11.83
USS 1/2	14.15	14.66	34.75	35.69	2.18	3.35	18.3
USS 9/16	15.75	16.26	37.13	38.07	2.18	3.35	20.48
USS 5/8	17.30	18.24	44.37	45.21	2.74	4.00	36.57
USS 3/4	20.45	21.39	50.62	51.56	3.10	4.50	52.49
USS 7/8	23.65	24.58	56.97	57.91	3.45	4.88	71.75
USS 1	26.80	27.74	63.32	64.26	3.45	4.88	87.59
USS 1.1/8	31.57	32.51	69.67	70.61	3.45	4.88	102.44
USS 1.1/4	34.75	35.69	76.02	76.96	3.45	4.88	121.08
USS 1.3/8	37.85	39.24	82.30	83.69	3.89	5.41	159.73
USS 1.1/2	41.02	42.42	88.65	90.04	3.89	5.41	184.19
USS 1.5/8	44.20	45.59	95.00	96.39	3.89	5.41	210.36
USS 1.3/4	47.37	48.77	101.35	102.74	3.89	5.41	238.28
USS 1.7/8	50.55	51.49	107.70	109.09	3.89	5.41	267.92
USS 2	53.72	55.12	114.05	115.44	3.89	5.41	299.32
USS 2-1∕4	60.08	61.46	120.4	121.79	4.91	6.29	387.49
USS 2-1∕2	66.43	67.81	126.75	128.14	5.33	7.11	460.45
USS 2-3∕4	72.77	74.67	133.1	135	5.79	7.87	544.46
USS 3	79.12	81.02	139.45	142.35	6.32	8.3	631.12

Products Description

Package & Shipping

Package details:

1) Sample order, 20/25kg per carton with our logo or neutral package;

2) For Large orders, we can custom packaging;

3) Normal Packing: 1000/500/250pcs per small box. then into cartons and pallet;

4) According to customers' requirements.

FAQ

1.How do you let me trust you?

We are a Golden supplier in Alibaba who do business for more than 5 years. You can make an order by Alibaba to us directly.

2.How about your price?

High-quality products with a reasonable price suitable for your market.

3.How do you control your quality?

We request a QC inspection for each batch of goods. And we can provide you inspection report and mill certificate if you want..

4.Could you provide free samples?

For new customers, We can provide free samples for standard fasteners. But the clients will pay the express charges. For regular customers, We will send you free samples and pay express charges by ourselves.

5.How about your delivery time?

Generally speaking, All the goods have stock with little quantity, we can delivery them with one week. If the quantity is 1-2container, we can give you with 30-45days.

6.What is your packing?

Our packing is 20-25kg for one carton,36 or 48pcs cartons for one pallet. One pallet is about 900-960kg, We also can make the customer's logo on the cartons. Or we customized cartons according to customers' requirement, If you need small box packing, we can do according to your requirement.

7.What is your payment term?

We can accept T/T,LC for general order. For new customer, we request 20%-50% T/T in advance, and balance payment should against B/L copy. For regular customer, we can provide delay payment after B/L date about 30-90 days.
